JBL SRX910LA Base Plate

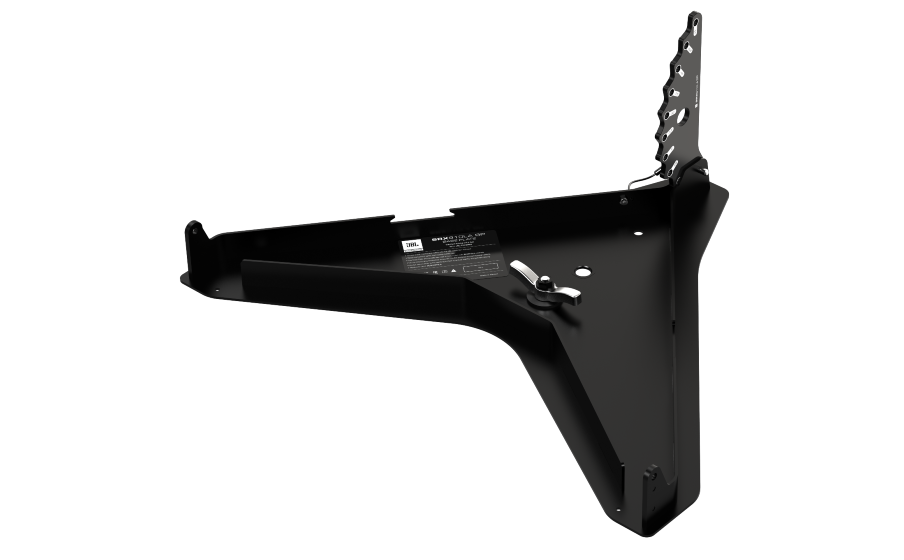

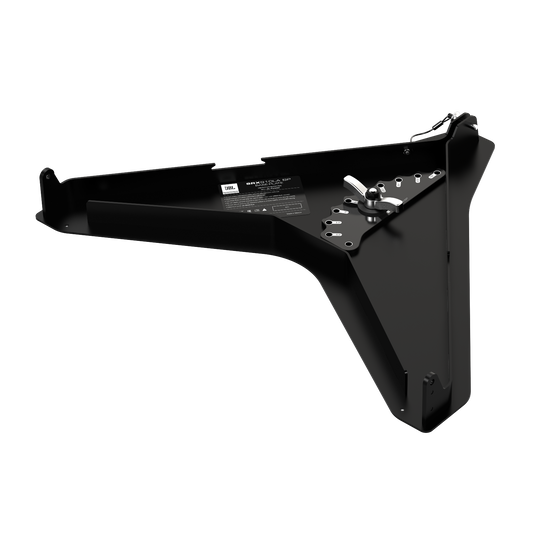

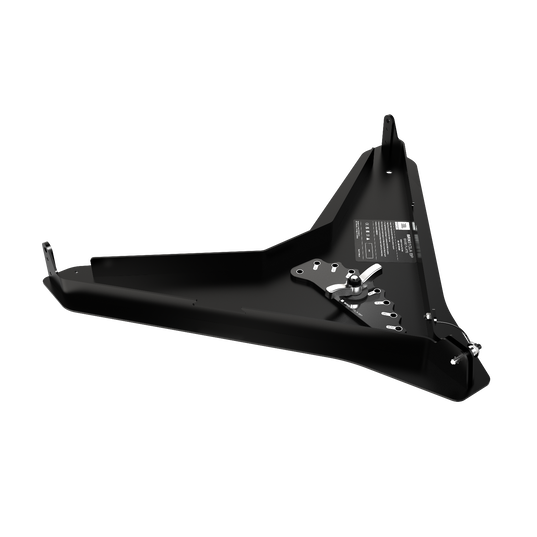

Base Plate for SRX910LA Arrays

Variations
Rp 20,000,000.002.0E7 each
For Bulk Enquiry: Click Here

Features

Enables Ground Stacking SRX910LA Arrays

Enables Ground Stacking SRX910LA Arrays

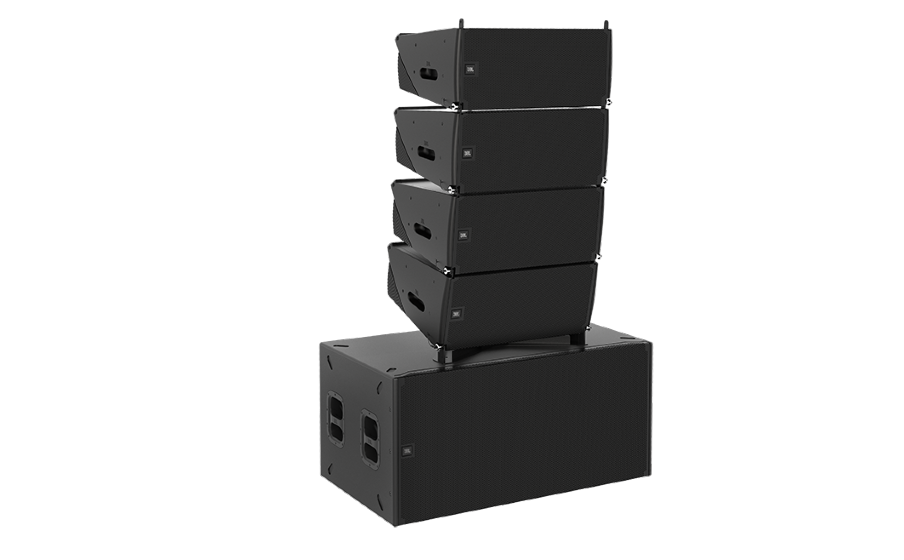

SRX910LA BP enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts

Universal M20 Threaded Pole Mount

Universal M20 Threaded Pole Mount

Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX918S or the SRX928S

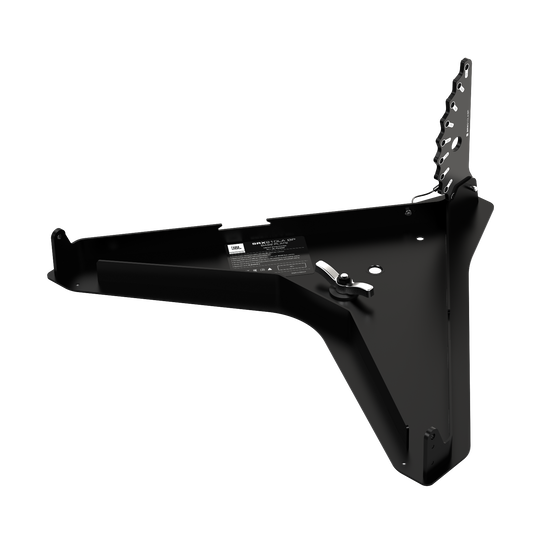

Rear Angle Selection Bar

Rear Angle Selection Bar

Allows for angles ranging from -15 to +5 degrees

High-grade Steel Construction

High-grade Steel Construction

Supports up to 4 SRX910LA speakers

Three Included M10 Through-Holes

Three Included M10 Through-Holes

Can be used to permanently attach an SRX906LA array to other support structures

Can be Used with the Pole Mount (JBL-P3312MX) Adapter

Can be Used with the Pole Mount (JBL-P3312MX) Adapter

To pole mount up to two SRX910LA cabinets

Specs & Downloads

Item#: JBL-P3238MX-LS

Product Description

Base Plate for SRX910LA Arrays

The SRX910LA Base Plate is a universal adapter frame that enables SRX910LA arrays to be ground stacked on top of compatible subwoofers or support structures such as stages, scaffolding, or carts. Using the included M20 screw, the SRX910LA BP connects to any supported subwoofer equipped with a standard M20 pole mount adapter, such as the SRX928S. The rear angle selection bar allows for angles ranging from -15 to +5 degrees. The three included M10 through-holes can be used to permanently attach an SRX910LA array to other support structures. Configurations and load conditions for using the SRX910LA BP can be obtained using JBL Line Array Calculator 3 software. For more information about the base plate and use cases refer to the SRX900 Series Rigging Manual.

General Specifications

Construction High-grade steel with anti-corrosion coating
Finish Black powder coat
Mechanical Safe Limit (2) SRX910LA
Mechanical Maximum Limit (4) SRX910LA

Dimensions

Height 75 mm (2.9 in)
Width 683 mm (26.9)
Depth 540 mm (21.3 in)
Net Weight 6.0 kg (13 lbs)
Shipping Weight 8.5 kg (18.8 lbs)

What's in the box?

  • 1 x Base Plate
  • 1 x M20 Thumb Screw
