Features
60 mm (2.5 in) driver
Ideal for speech and mid-high music applications
Can drive 2 or 4 pieces from Control 50S/T
For full-range, wide bandwidth performance
Can intermix
With Control 52 surfacemount and Control 42C in-ceiling satellite speakers
Specs & Downloads
Item# C62P
Product Description
Ultra-Compact Mid-High Satellite Pendant Speaker
Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.
General Specifications
Frequency Response (-10 dB)
150 Hz – 20 kHz
Frequency Range (±3 dB)
200 Hz – 17 kHz
Power Capacity
50 Watts Continuous Program Power (2 hrs) ; 25 Watts Continuous Pink Noise (2 hrs) ; 30 Watts Continuous Program Power (100 hrs) ; 15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity
87 dB (4.0 V, 1 W) ; 84 dB (2.83 V)
Nominal Coverage Angle
140° (+25°/-50°)
Directivity (Q)
4.7
Directivity Index (DI)
6.2 dB
Rated Maximum SPL @ 1m
97 dB continuous pink noise, 103 dB peak
Rated Impedance
16 ohms (no transformer taps)
Recommended High-Pass Frequency
150 Hz
Transducer Driver
60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.

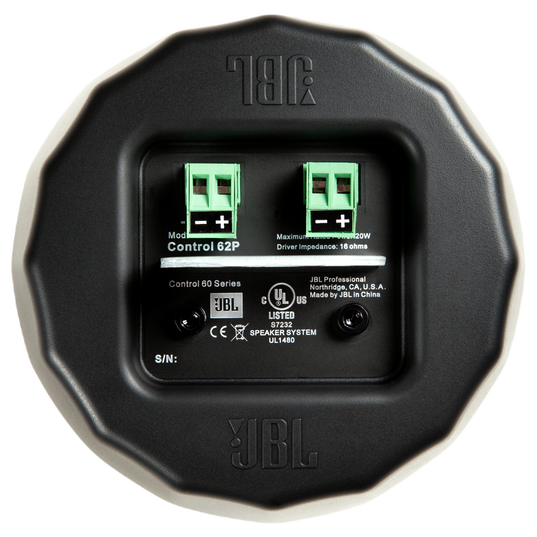

Termination
Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension
Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings
Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions
Diameter
128 mm (5.1 in)
Depth
121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (ea)
0.7 kg (1.5 lbs)
Shipping Weight (pair)
2.0 kg (4.3 lbs)
Included Accessories
Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories
MTC-PC62 top panel / terminal cover
Design
Enclosure Material
High impact polystyrene
Grille
Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Finish
Available in black or white. Paintable.
What's in the box?
- 1 x Control 62P Ceiling Speaker
- 1 x Suspension cable system
- 1 x 2-pin removable locking euro-block connector
- 1 x Rubber cover for euroblock connectors
