Features
A true 3-way full range loudspeaker
Designed for KTV applications
Linear suspension and vented yoke design for 12” woofer
Effectively reduce distortion and power compression
Optimized 5” paper cone squawker
Realizes better mid-range vocal reproduction
1” aluminum dome tweeter
Delivers optimal high frequency response
Precision engineered crossover
For accurate and optimal frequency response
Built-in protection circuit
Protects high frequency driver from excess power without interrupting performance
Venting port
Is designed to the side for versatile installations
PSL (Passive Sound-Lighting) Technology
Indicates JBL devotion to scientific advancement
Specs & Downloads
Item# JBL Ki512 - PAK
Product Description
12 Inch 3-Way Full Range Loudspeaker System

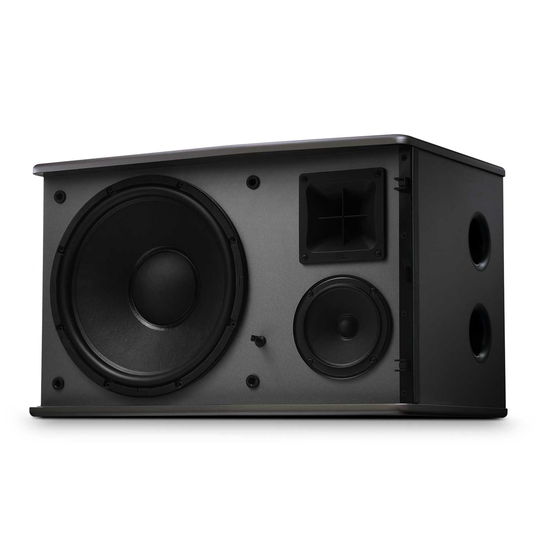

Ki512 is a full-range speaker designed specifically for KTV applications. The 3-way speaker combines a 12” woofer, a 5” squawker and a 1” aluminum dome tweeter and is able to handle continuous power of 400 Watts.
The high-power 12” woofer features a long fiber pulp cone and pure nitrile butadiene rubber surround and provides necessary stiffness and capacity to withstand the tremendous accelerating force from the motor. The 5” paper cone squawker and the 1” aluminum dome tweeter optimizes middle and high range reproduction and guarantees non-compromised sound quality for the whole speaker system.
Ki512 takes on a bold and unique appearance. Its asymmetric cool brown enclosure echoes the deliberately-defined three-way system. The clear-cut outlines indicate the quality and performance the speaker possesses. The front panel comprises a paillette fabric and a snow-flake patterned grille and highlights a rose gold strip. The trendy enclosure creates an air of elegance and professionality.
As a showcase of JBL’s addiction to technology, JBL ENTERTAINMENT illuminate its logo through PSL (Passive Sound Lighting) Technology. Whether you are enjoying your time singing loud, or appreciating the music sitting still, you will see JBL sound with your naked eyes.
General Specifications
System Type
12′′, 3-way, bass-reflex
Frequency Response (-10dB)
42 Hz - 20 kHz
Frequency Response (-3 dB)
58 Hz - 16 kHz
Sensitivity
94 dB
Nominal Impedance
8 Ohms
Maximum SPL (1m)
120 dB (126 dB peak)
Power Rating *2 (Continuous/Program/Peak)
400 W/800 W/1600 W
Coverage Pattern
80° × 60° (H × V)
LF Driver
1 × 12′′ woofer
MF Driver
1 × 5′′ squawker
HF Driver
2 × 1′′ aluminum dome tweeter
Input Connectors
Binding post
Enclosure Construction
Vinyl covered 15mm MDF
Dimensions
Height
360 mm (14.2 in)
Width
570 mm (22.4 in)
Depth
392 mm (15.4 in)
Net Weight
35.2 Kg (77.6 lbs)
