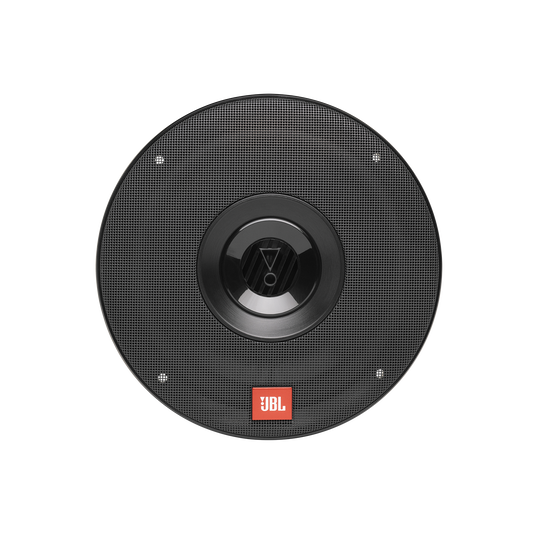

Club 602C

Features

Plus One™ woofer cone architecture

Patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other speakers for the same size, resulting in higher sensitivity, increased low-frequency output and greater musical character.

Adjustable tweeter output level

The Club 622 and Club 602C ,Club 602CTP component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.

Acoustically damped, UV-resistant polypropylene cone

Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality, while standing up to the demanding heat and humidity of the car environment.

Bigger magnet, Bigger power handling

The new Club lineup features a larger magnet delivering higher power handling than competitors at similar price points.

Starfish™ Tweeter Mounting Adapter

The club 602C component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such an A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn’t require removing the whole assembly.

I-Mount Tweeter Mounting Kit

The I-Mount™ (patent no. 5,859,917) tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes a flush cup and surface-mount mounting hardware. With a 1-3/4” cutout and a 1" mounting depth, installation becomes a snap. This allows the tweeter to be flush-mounted and can be angled up to ±40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.

Specs & Downloads

Item# SPKCB602C

Product Description

Pro Car Audio by JBL

Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors,and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation .Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" , 4" x 6" , 6" x 9" , and 3/4" —they’re the perfect upgrade from factory speakers.

General Specifications

Power Handling 70W RMS, 210W peak

Sensitivity (@ 2.83V) 92dB

Frequency Response 55Hz – 20kHz

Nominal Impedance 3.0 ohms

What's in the box?

2 x Speakers
2 x Grilles
2 x Plastic multi-hole adapter rings
1 x Foam gasket
2 x Crossovers
2 x Tweeters
2 x Flush-mount cups
2 x Threaded flush-mount adapters
2 x Surface-mount cups
2 x Starfish tweeter mounts
2 x Plastics locking nuts
30 x Screws
8 x Speed clips
2 x Spacers
2 x Washers
