JBL AMPCBA754

Club A754

High performance car amplifier

Variations
Rp 3,000,000.003000000.0 each
For Bulk Enquiry: Click Here

Features

Compact size

Compact size

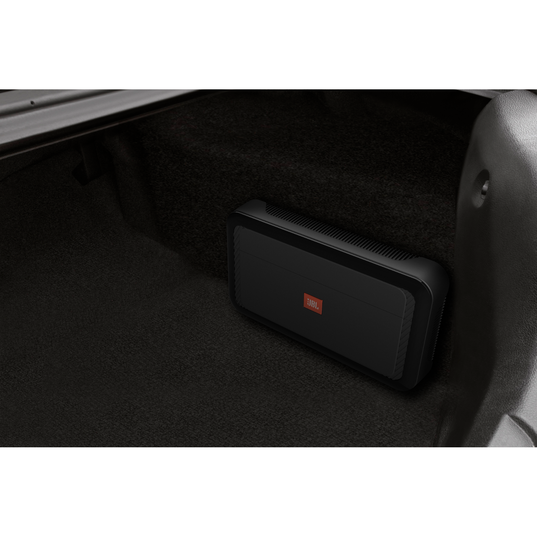

The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input

High and low level input

Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.

Variable crossover

Variable crossover

Unlike many amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.

Low noise and distortion

Low noise and distortion

The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.

Input Level Control

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection

Full on-board protection

On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Preamp Outputs

Preamp Outputs

Using multiple amplifiers, the Club A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.

Specs & Downloads

Item# AMPCBA754

Product Description

Value engineered car amplifier with JBL power and performance

The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.

General Specifications

75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms) Yes
200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode) Yes
Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels Yes
Preamp and speaker-level inputs Yes
Preamp outputs Yes
Fuse rating 30A x 2
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier Yes
WxHxD=320mm x 51.3mm x 180mm WxHxD=12-5/8” x 2-1/16" x 7-1/8” Yes

What's in the box?

  • 1 x Club A754 four channel amplifier
  • 4 x Bare wire-to-RCA adapters
  • 4 x 30A ATO fuses (2 installed, 2 spare)
  • 4 Mounting screws (M4 x 53mm)
  • 2 x JBL stickers
  • 1 x Owner's manual
JBL CLub One Box visual
