Conceal C83

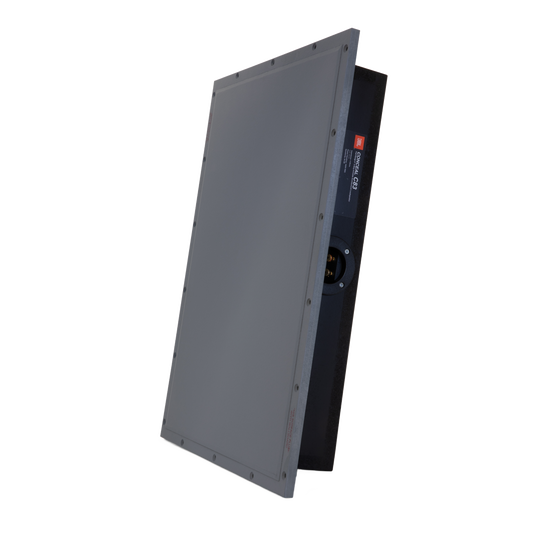

The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
Promotions
Variations
Features
One-piece design with 8-inch (200mm) LF driver and duel-element MF/HF driver.
Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

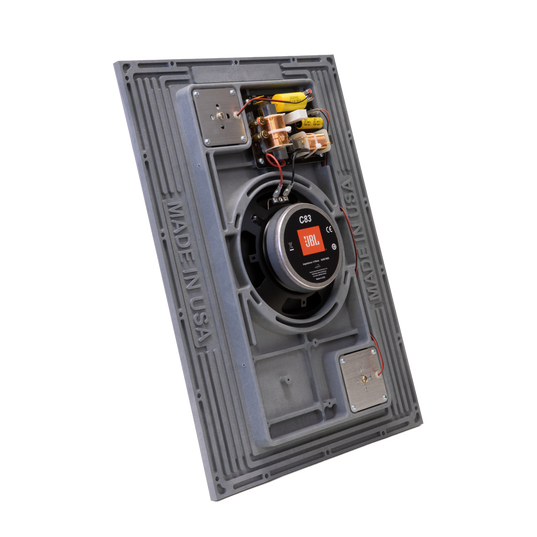

Custom designed transducers with JBL premium acoustic crossover network.

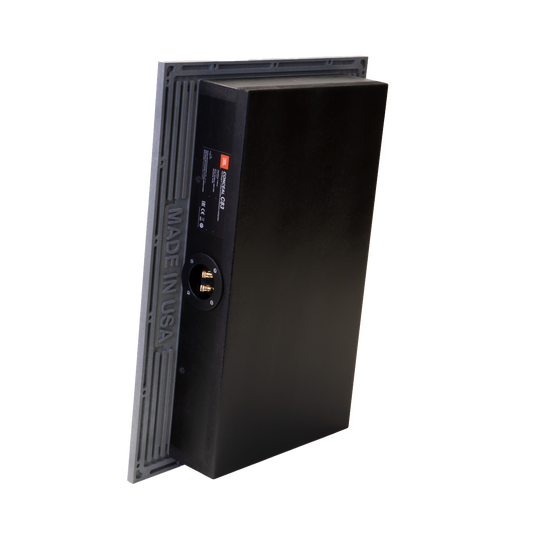

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces.
Loudspeaker system installs like a standard drywall patch.
Paintable surface can be custom finished for complete invisibility.
C12PCB Pre-Construction Boards (sold separately).
Specs & Downloads
Item# JBLC83
Product Description
Conceal C83
The JBL Conceal C83 Invisible Loudspeaker is a high-performance 3-element design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. The finished loudspeaker panel installs easily and disappears completely into the surrounding walls or ceiling, allowing optimal placement virtually anywhere in a home. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
General Specifications
Type
3-way In-Wall/In-Ceiling loudspeaker
Low Frequency Driver
8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
Mid Frequency Driver
1.18-inch (30mm) voice coil transducer with neodymium magnet
High Frequency Driver
1-inch (25mm) voice coil transducer with neodymium magnet
Recommended Amplifier Power
50 - 160 WRMS
Impedance
4 Ohm
Loudspeaker Sensitivity
84 dB/1W/1m measured in-room
Frequency Response
45 Hz - 20 kHz (-6 dB) measured in-room
Crossover Frequency
500 Hz
Enclosure Type
Sealed, with wooden back-box
Protection
Two independent self-resetting devices (LF and MF/HF)
Input Type
Five-way gold-plated spring-loaded binding posts
Warranty
5 Years
Dimensions
Panel Dimensions
22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
Cut-out Dimensions
22-1/8” H x 16” W (562mm H x 406mm W)
Mounting Depth
3-3/8-inches (86mm)
Product Weight
21.8 lbs (9.9kg)
Shipping Weight
25.5 lbs (11.5kg)
