fitur
Radiation Boundary Integrator® (RBI) technology
Adapted from the groundbreaking VERTEC™ Series of line array loudspeakers, delivers consistent coverage of the listening area
Wide 120° coverage pattern
Allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance
Single-point mounting system
For easy and secure suspension in open-ceiling applications
Spesifikasi & Unduhan
Item#: C65P/T
Deskripsi Produk

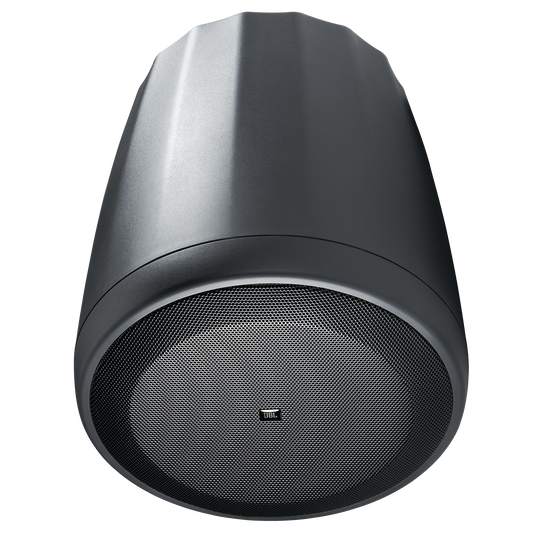

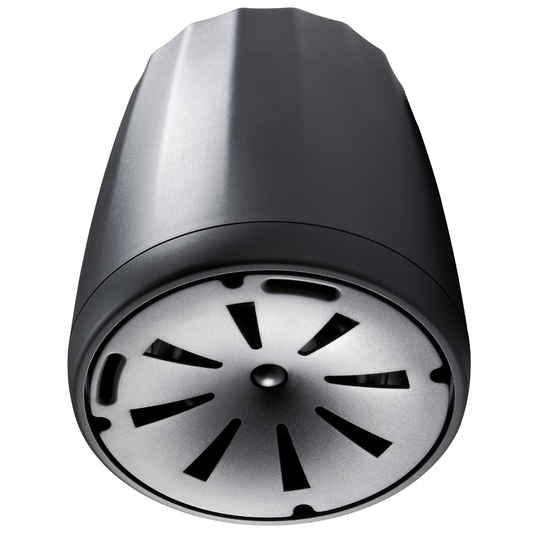

Compact Full-Range Pendant Speaker
Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space. NOTE: Priced as each but must be sold as pairs, so two must be ordered.
Spesifikasi General
Frequency Response (-10 dB)
55 Hz – 20 kHz
Frequency Range (±3 dB)
78 Hz – 18 kHz
Power Capacity
75 Watts Continuous Pink Noise Power (with 300 Watts peaks) 150 Watts Continuous Program Power
Nominal Sensitivity
86 dB
Nominal Coverage Angle
120° (+20°/-10°)
Directivity (Q)
5.3
Directivity Index (DI)
7.2 dB
Rated Maximum SPL @ 1m
105 dB continuous pink noise, 111 dB peak
Rated Impedance
8 ohms
Transformer Taps
70V = 60W, 30W, 15W & 7.5W ; 100V = 60W, 30W, 15W
Transformer Insertion Loss
0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
LF Driver
130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF Driver
20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

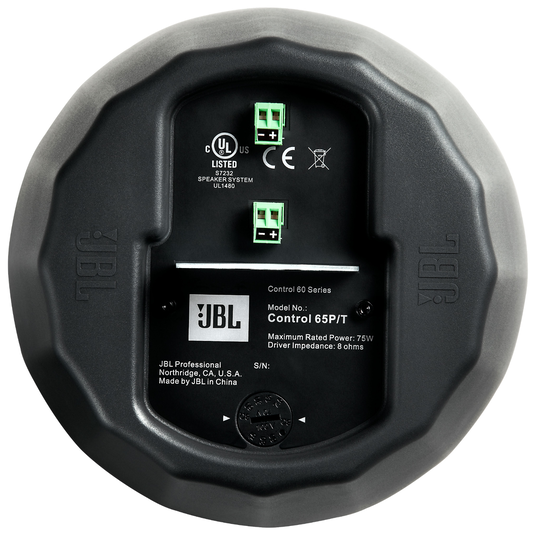

Termination
Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension
Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings
Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Included Accessories
Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
Optional Accessories
MTC-PC60 top panel / terminal cover
Ukuran
Diameter
234 mm (9.3 in)
Depth
259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (ea)
3.7 kg (8 lbs)
Shipping Weight (pair)
8.7 kg (19 lbs)
Design
Enclosure Material
High impact polystyrene

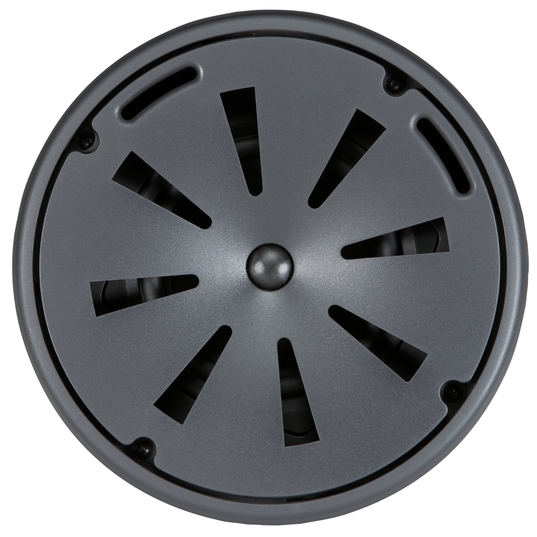

Grille
Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Finish
Available in black or white. Paintable.
Apa yang ada di dalam kotak?
- 1 x Control 65P/T Ceiling Speaker
- 1 x Suspension cable system
- 1 x 2-pin removable locking euro-block connector
- 1 x Rubber cover for euroblock connector
Manual & Unduhan
Panduan pemilik terbaru, panduan quick start, dan dokumen.
