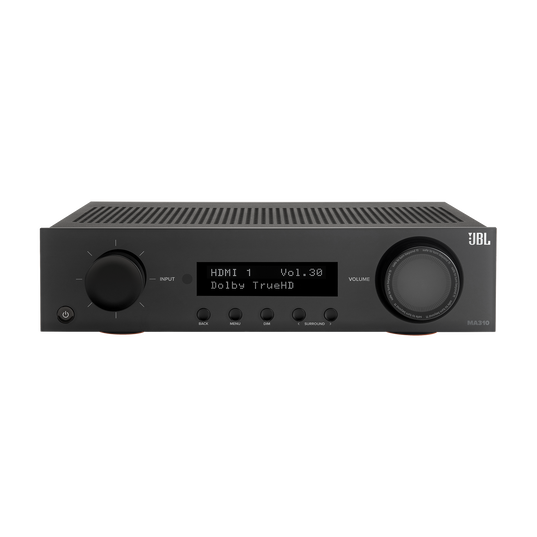

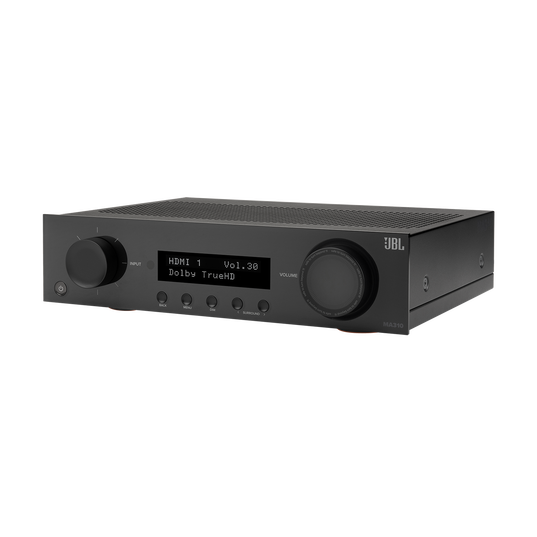

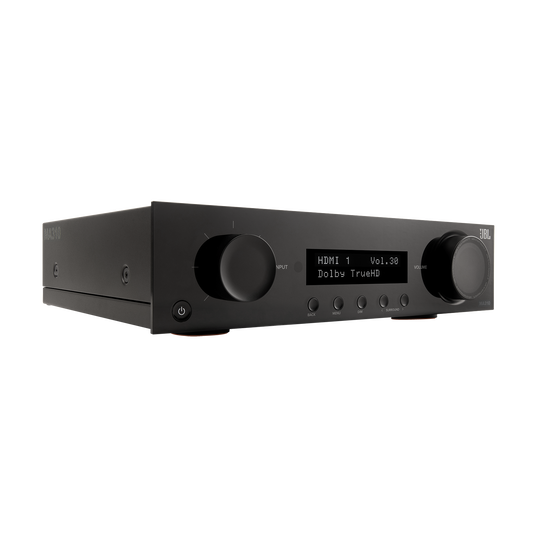

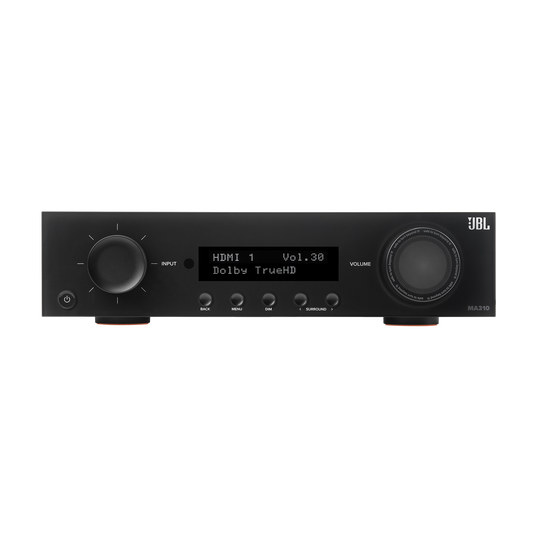

MA310

5.2-channel 4K AV Receiver

The JBL MA310 AV Receiver delivers extraordinary performance for a supreme home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity.
Variations

fitur

Extraordinary audio and video performance

Extraordinary audio and video performance

5.2-channel AV receiver that delivers extraordinary audio performance with 4K video for a supreme home cinema experience.

Intuitive setup with a minimalist modern design

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus ARC.

High-performance immersive surround sound

High-performance immersive surround sound

Native 5-channel decoding of Dolby and DTS formats.

Bring both music and movies to life with true high fidelity

Bring both music and movies to life with true high fidelity

Designed with a passion for music and movies, bringing both to life with true high fidelity.

Bluetooth streaming

Bluetooth streaming

Stream music wirelessly via Bluetooth v5.1 + Low Energy.

On-screen setup and operation

On-screen setup and operation

On-screen display for easy system setup and operation (via HDMI).

Powerful amplification

Powerful amplification

Five channels of low noise Class D amplification for real world power to all channels.

EZ Set EQ

EZ Set EQ

EZ Set EQ provides easy-to-use room equalization for optimized sound quality.

Spesifikasi & Unduhan

Item# JBLMA310BLKAS

Deskripsi Produk

Bring both music and movies to life with true high fidelity.

The JBL MA310 is an AV Receiver that delivers extraordinary performance with 4K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus ARC. With native 5-channel decoding of Dolby and DTS formats, the MA310 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth. The MA310 features five channels of low noise Class D amplification for real world power to all channels.

Spesifikasi General

HDMI Audio Return Channel Yes
4K HDMI input connectors (HDMI 2.0,HDCP 2.2 up to 4K/60Hz Ultra HD) 4
HDR 10 Yes
Pure Direct Yes
EZ Set EQ Yes
Digital signal processing up to 24-bit/192kHz

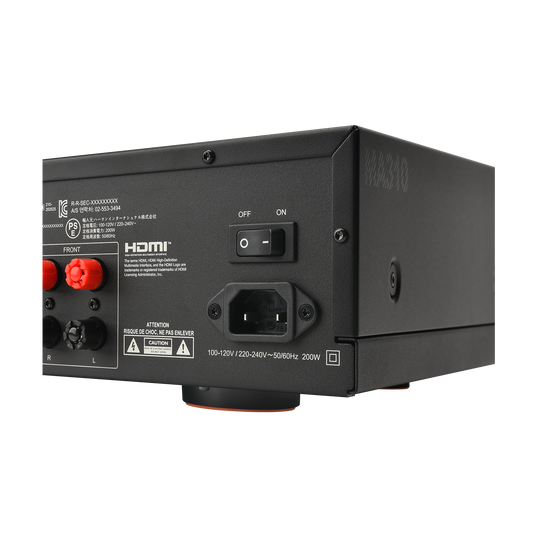

Mains voltage 110 – 240V, 50–60Hz
Max. power consumption 200W
Standby power consumption <0.5W

Spesifikasi Audio

Channels 5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) 50W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 60 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 100 W RMS

Ukuran

Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight 11.3lb (5.1kg)

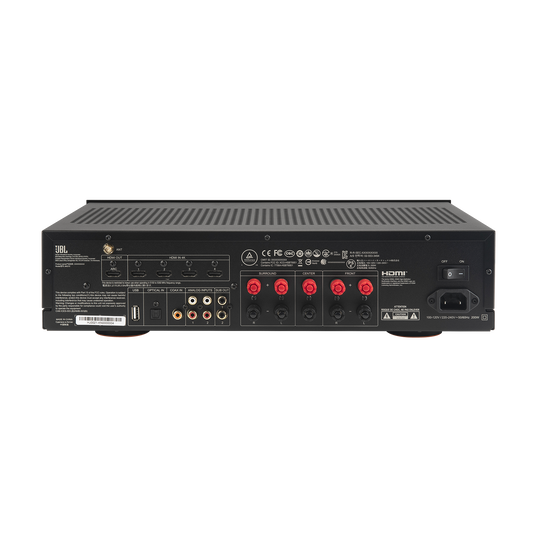

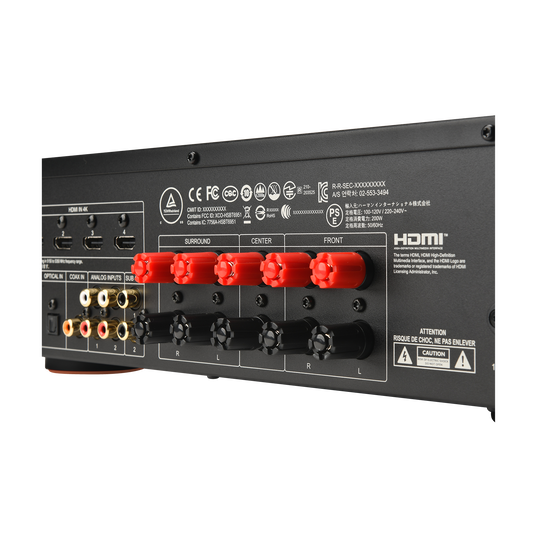

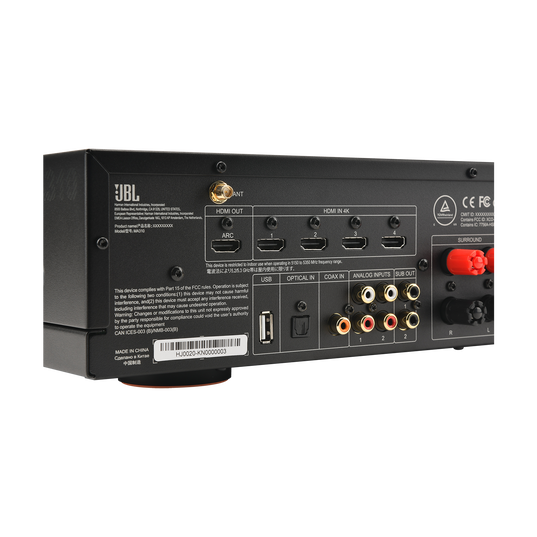

Spesifikasi Kontrol dan Koneksi

HDMI Input/Output 4 / 1
Bluetooth receiver Yes (v5.1, Low Energy)
Digital Audio Input 1 Coax, 1 Optical
Stereo analog input 2 single-ended RCA
Pre-Out (single ended RCA) Subwoofer 1, Subwoofer 2

Apa yang ada di dalam kotak?

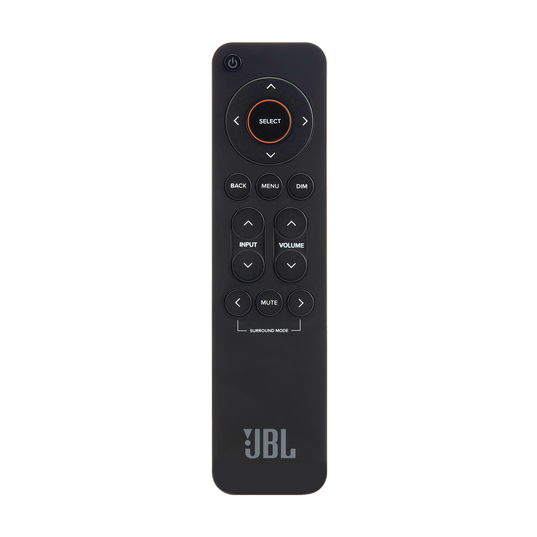

  • 1x IR Remote
  • 2x AAA batteries
  • 1x Bluetooth antenna
  • 1x Power Cord
  • 1x Quick-Start Guide
  • 1x Safety Sheet
