JBL BAR 9.1 True Wireless Surround with Dolby Atmos®

Details
Variations

9.1 Channel Soundbar System with surround speakers and Dolby Atmos®

Untuk Pembelian Dalam Jumlah Besar: Klik Di Sini

Feel like you're right in the scene with 3D surround sound

The JBL Bar 9.1 soundbar brings audio experience of a movie theater into your home with two detachable surround speakers and the added punch of Dolby Atmos® and DTS:X™ 3D sound. With 820 watts of total system power, you can enjoy every Oscar-worthy performance through powerful, crystal-clear audio. Turn up the 10’’ subwoofer for pulse-pounding bass or turn it down and relax with Chromecast and AirPlay music streaming. Immerse yourself in the latest blockbuster or re-live your favorite movie or sport scenes. The most incredible home cinema sound experience is here.

Item# JBLBAR913DBLKAS

Spesifikasi General

5.1.4 channel Yes
Power supply 100 - 240VAC, ~ 50/60Hz
Battery charge time 3 hours
Total speaker power output (Max. @THD 1%) 820 W
Main Soundbar output power (Max. @THD 1%) 400
Surround speakers output power (Max. @THD 1%); 2 x 60W Yes
Subwoofer output power (Max. @THD 1%); 300 Yes
Soundbar transducer 4×racetrack drivers +2 × up-firing full-range drivers+3 × 0.75” (20mm) tweeter
Surround transducer (per piece) up-firingfull-range driver + 0.75” (20mm) tweeter
Subwoofer transducer 10"
Operating temperature 0°C - 45°C
Standby for Soundbar (when all wireless connections are deactivated) < 0.5 W
Networked standby (Soundbar) < 6.0 W
Networked standby (Subwoofer) < 2.0 W
Time to standby <10 minutes

Spesifikasi Audio

HDMI In 1
HDMI eARC 1
HDMI HDCP version 2.3
103dB Yes
34Hz~20KHz Yes
1 Optical, Bluetooth, Chromecast, AirPlay2, USB Yes

Ukuran

Soundbar dimensions (WxHxD); 884 x 62 x 120 (mm)/ 34.8” x 2.4” x 4.7” Yes
Detachable surround speaker, per piece 173 x 60 x 120 (mm) / 6.8” x 2.4” x 4.7”
Subwoofer dimensions (WxHxD); 305 x 440 x 305(mm) / 12.0" x 17.3" x 12.0" Yes
Soundbar weight 3.64 kg/ 8.0 lb
Detachable surround speaker 0.72 kg x 2/ 1.6 lb x2
Subwoofer weight 11.10 kg / 24.5 lb

Control and Connection Specifications

USB port Type A
USB rating 5 V/ 500 mA
Supported file format MP3
MP3 codec MPEG 1 Layer 2/3, MPEG 2Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate; 16 KHz - 48 KHz Yes
MP3 bitrate 80 kbps - 320 kbps
USB Port; (USB playback is available in US version. For other versions, USB is for Service only.) Yes
Bluetooth version 4.2
Bluetooth profile A2DP V1.2/ AVRCP V1.5
Bluetooth frequency range; 2402MHz-2480MHz Yes
Bluetooth Max. transmitting power 13dbm  (EIRP)
Modulation Type GFSK, π/4 DQPSK, 8DPSK
Wi-Fi network IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range 2412 – 2472 MHz (2.4GHz ISM Band,USA 11 Channels, Europe and others13 Channels)
2.4G Wi-Fi Max. transmitting power 20 dBm (EIRP)
Modulation Type DBPSK, DQPSK, CCK,QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi frequency range 5.15 - 5.35 GHz, 5.470-5.725 GHz,5.725 - 5.825 GHz
5G Wi-Fi Max. transmitting power 22 dBm (EIRP)
Modulation Type QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wireless frequency range 5180.0 - 5240.0MHz (Except Europe), 5725.0 - 5825.0MHz
5G Max. transmitting power 13 dBm (EIRP)
Modulation Type QPSK
Klik di sini untuk daftar lengkap semua spesifikasi untuk produk ini

Spec Sheet (English)

Bahasa Indonesia 612 KB
  • 1x Main Soundbar
  • 2x Detachable wireless surround speakers
  • 1x Wireless subwoofer
  • Remote control with 2 x batteries
  • Power cords (up to 8pcs depending on region SKUs)
  • HDMI cable x1
  • 2 x L-shape Wall-mount bracket (Main Bar) + 2 x U-shape Wall-mount bracket (for Surround Speakers) kit with screws
  • Quick start guide
  • Warranty card
  • Safety sheet
  • Side caps (x4, For some regions only)

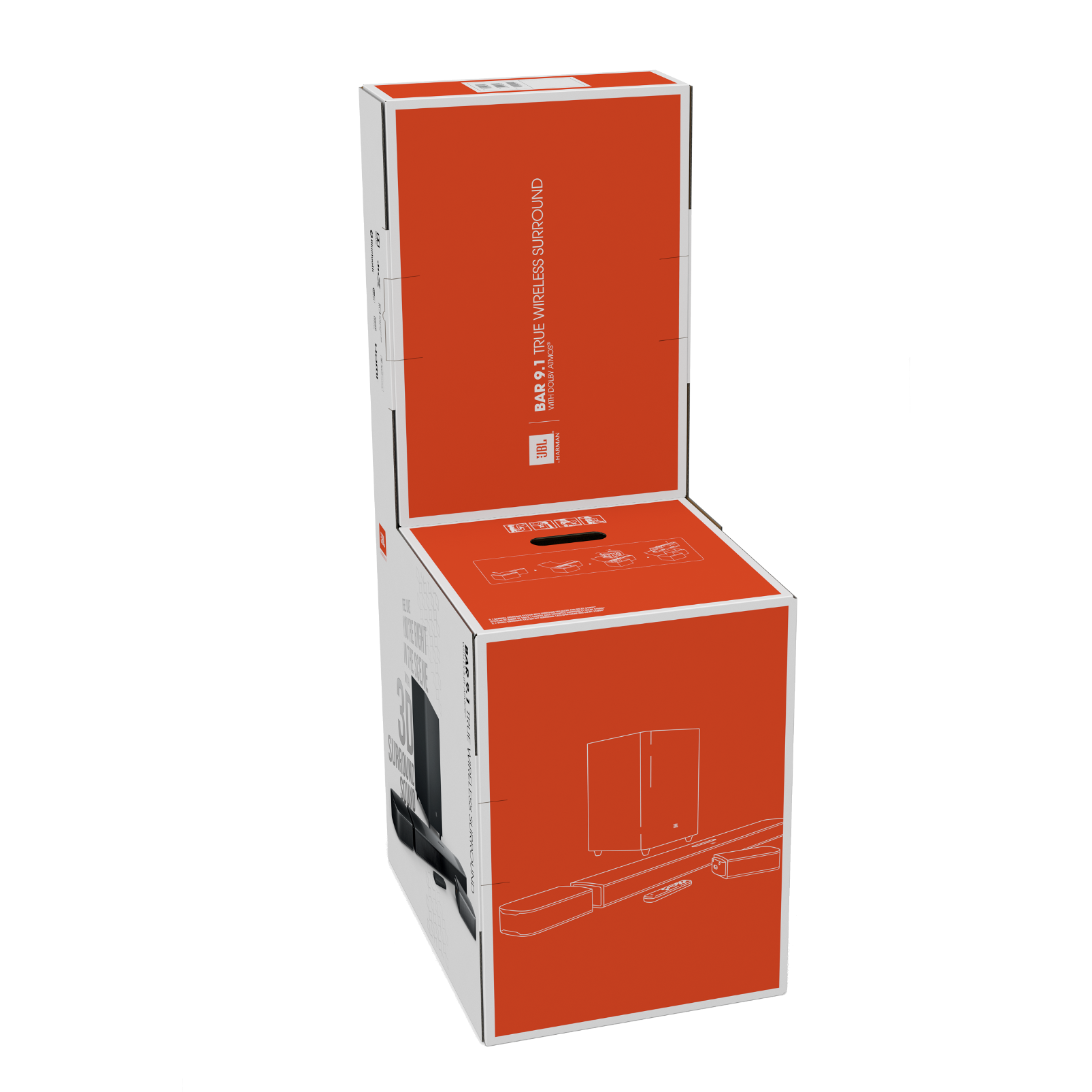

product box
