Arena 8IW
The JBL Arena 8IW features a 1-inch silk dome tweeter with a waveguide to ensure smooth and even coverage across the listening position. An 8-inch Polycellulose woofer provides the low end energy to immerse you in room-filling sound. Installation is simple and quick with the XL-2 mounting mechanism and the zero-bezel magnetically attached grille allows the loudspeaker to discreetly blend into any decor.
Promotions
fitur
Sound Inspired by JBL's lengendary M2 Master Reference Monitor

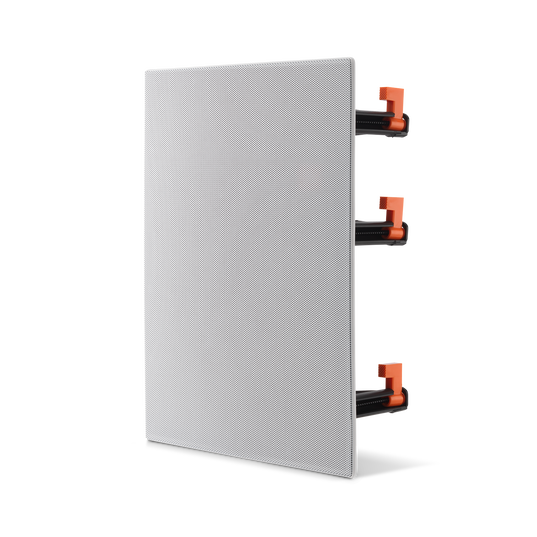

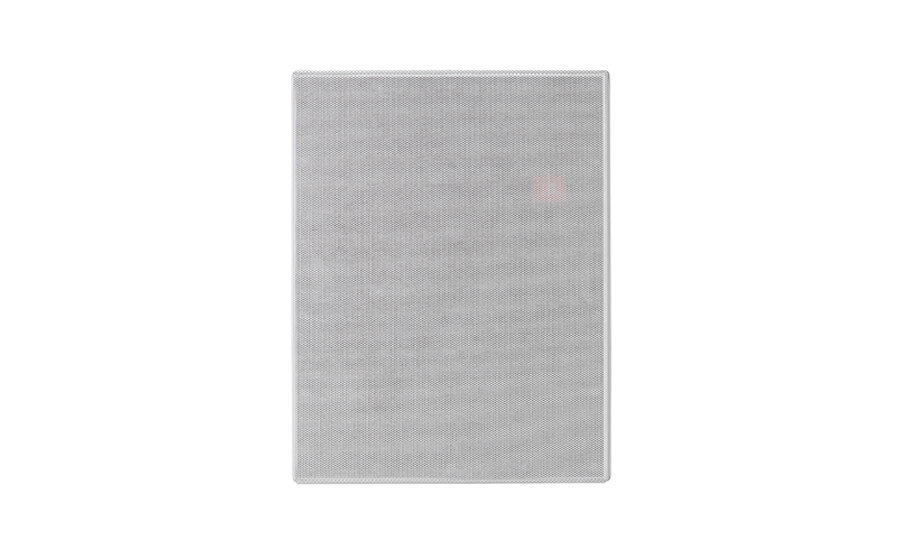

Paintable, nearly invisible zero-bezel magnetic grill

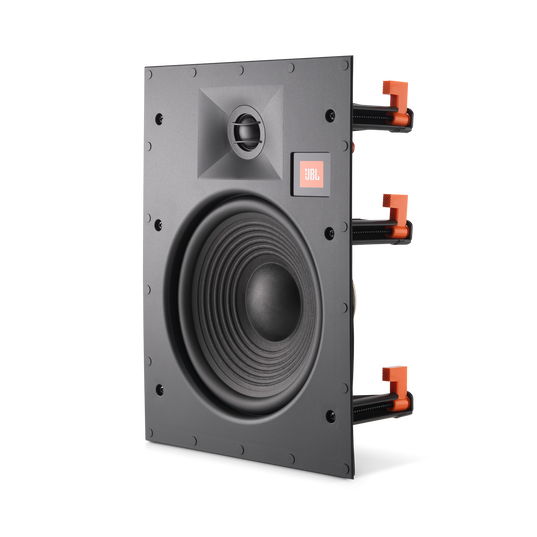

Superior XL-2 installation bracket
Variations
Spesifikasi & Unduhan
Item#: ARENA8IW
Deskripsi Produk
Arena 8IW
The nearly invisible JBL Arena architectural series speaker, seamlessly built into your custom home audio installation, immerses you in full, room-filling JBL sound.
Spesifikasi General
Mounting Depth
3-13/16" (97mm)
Compatible Wall Material Thickness
0.5" – 2.0" (130mm – 250mm)
Shipping Units of Measure
Each
Warranty
5 Years
Pre-Construction Bracket Part number
PCK8
Back Box Part Number
FBB8
Spesifikasi Audio
Impedance
8 ohms
Recommended Amplifier Power
100W
Frequency Response
30Hz - 20kHz
Loudspeaker Sensitivity:88dB 2.83V @ 1m
Yes
Low Frequency Driver Size and Material
8" (203mm) Polycellulose Woofer
High Frequency Driver Size and Material
1" (25mm) Silk-Dome Tweeter
Ukuran
Cutout Dimensions
(H x W)
Grille Finished Dimensions
(H x W)
Apa yang ada di dalam kotak?
- Main Unit
- Magnetic Grill
- Owners Manual
- Printed Mounting Template
- Warranty Card
Manual & Unduhan
Panduan pemilik terbaru, panduan quick start, dan dokumen.
